Spatial population genetic analysis: FEEMS

Through methods like PCA and phylogenetic trees, you can gain some insight into how populations cluster together, and which population may be more diverged from each other. But it’s always nice to also look at this in a spatial context, e.g. on a map. FEEMS is a faster version of the statistical method Estimating Effective Migration Surfaces (EEMS), and it is based on the notion of “isolation-by-distance” (IBD). This is the idea that individuals who live near each other tend to be more similar to individuals who live far apart. EEMS is a good method to visualize deviations from IBD on a map, hereby finding areas where gene flow is less than expected (i.e. barriers; indicated in orange) or areas where gene flow is higher than expected (i.e. increased connectivity; indicated in blue). Below you can see an example for a dataset of lions. The red dots are sampling localities, and you can see some orange shading where EEMS inferred reduced gene flow. For example, in the central African rain forest, the Zambezi valley and the Arabian peninsula.

png

For more information on these methods see the original manuscripts:

FEEMS install/configuration

FEEMS can be a bit tricky to install, so for the purpose of this workshop we wrote all the steps into a script that you can simply execute (to save time). You can see the details of what the script is actually doing in the RADCamp technical configuration document.

Open a new Terminal and type:

/home/jovyan/work/scripts/install_feems.sh

This will run for a few minutes, writing progress to the screen. After it finishes you can proceed with the rest of this tutorial.

Safe to ignore the warning: You can ignore the warning that says DEPRECATION: Legacy editable install of feems==1.0.1 ..., it is does not impact the FEEMS install.

Create a new notebook for the FEEMS analysis

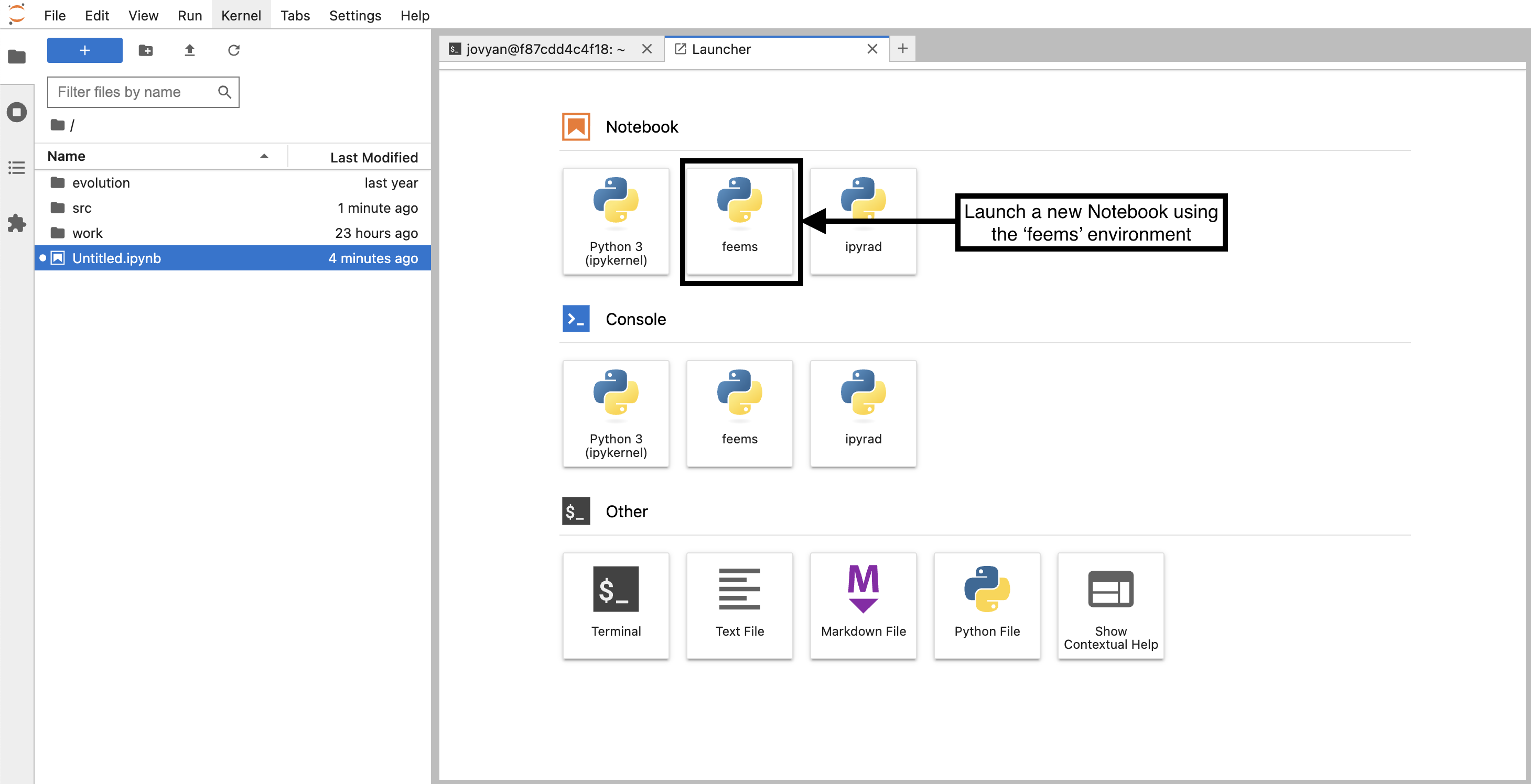

In the jupyter notebook browser interface navigate to your ipyrad-workshop directory and use the Launcher to create a new Notebook using the ‘feems’ environment.

png

First things first, rename your new notebook to give it a meaningful name. Choose File → Save Notebook and rename your notebook to “seadragon-FEEMS.ipynb”

Import FEEMS and other necessary modules

The import keyword directs python to load a module into the currently running context. This is very similar to the library() function in R. We begin by importing several feems functions and other needed libraries. Copy the code below into a notebook cell and click run:

import cartopy.crs as ccrs
import h5py
import matplotlib.pyplot as plt
import numpy as np

from feems import SpatialGraph, Viz
from feems.utils import prepare_graph_inputs
from sklearn.impute import SimpleImputer

Input data types

What is the necessary input data for FEEMS? It needs several different input data streams and we will briefly walk through these different datatypes and where to get these from.

Import the genotype data and impute missing values

FEEMS uses SNP data (not the full sequence). Within the FEEMS tutorial they use data from PLINK, but this is complicated to obtain, and we can actually import the SNP data directly from an ipyrad output file. Open a new cell in your notebook and copy/paste this text and run it:

# Import the seadragon SNP data in hdf5 format
data = h5py.File("/home/jovyan/ipyrad-workshop/seadragon_outfiles/seadragon.snps.hdf5")

# Convert the ipyrad SNP format for FEEMS input
raw_genotypes = np.apply_along_axis(np.sum, 2, data["genos"][:])

# Impute missing values (required by FEEMS)
G = np.where(raw_genotypes <= 2, raw_genotypes, np.nan*raw_genotypes)
imp = SimpleImputer(missing_values=np.nan, strategy="mean")
genotypes = imp.fit_transform(np.array(G).T)

What is ‘imputation’ and why do we need to do it? FEEMS can’t deal with missing data. Here we are filling missing genotypes with the mean value at a given SNP position, a standard imputation method.

Latitude/Longitude coordinates for samples

Typically, you will have information about the sampling localities of your data. FEEMS takes this data as a vector of Longitude/Latitude coordinates. When running FEEMS on your own data it’s very important to ensure the order of the samples in the genotypes and the order of the samples in the coords file are identical.

To save time we’ve already prepared this file for you (with correct ordering of samples), and you can look at the structure of the file and the first few lines:

!head ~/work/SeadragonData/seadragon_coords.txt

148.308428 -41.869351
148.308428 -41.869351
148.308428 -41.869351
148.308428 -41.869351
148.308428 -41.869351
148.308428 -41.869351
151.219347 -34.002666
151.219347 -34.002666
151.219347 -34.002666
151.219347 -34.002666

The ! at the beginning of this line tells the notebook to run this command using bash instead of python. It’s a trick for running command line commands inside of the notebook cell context.

Coordinates of a polygon circumscribing your focal region

You also need to provide FEEMS with an ‘outline’ of the area you want to include in your analysis. The format of the ‘outer’ file should be a plain text file with a list of Longitude/Latitude points describing a polygon of your bounding region. You can use the following website to create one of these, by clicking on the map and then copy-pasting the coordinates to a new file.

NB: This site is way better for selecting latlongs on a map: geojson.io

png

To save time, we’ve also prepared this file for you and you can look at the structure of the file and the first few lines:

!head ~/work/SeadragonData/seadragon_outer.txt

143.410519 -38.771531
145.036496 -37.597144
146.310910 -38.668671
147.761105 -37.666749
149.694699 -37.457739
150.441769 -35.120239
151.046018 -33.806874
151.403073 -33.105685
151.757382 -32.706762
152.419309 -32.417407

A vector file of a global-scale triangular grid (.shp file)

Another necessary input file is a shape file containing a triangular grid at a given resolution. It’s easiest to use one of the .shp files provided in the FEEMS github repository, which are at 100km and 250km resolution. If you need finer resolution you can use a python package called pygplates, or in R you can use the sf package. Again, to save time we provide a grid file scaled for the Seadragon data within the cloud instance work/grid directory.

Load sample coordinates, the ‘outer’ bounding polygon, and the global grid file

In the next cell we will read in the ‘outer’, ‘coords’, and grid file data, and then call prepare_graph_inputs which is a FEEMS function for preparing the data.

%%time
grid_path = "/home/jovyan/work/grid/world_triangle_res8.shp"
outer = np.loadtxt("/home/jovyan/work/SeadragonData/seadragon_outer.txt")
coords = np.loadtxt("/home/jovyan/work/SeadragonData/seadragon_coords.txt")

outer, edges, grid, _ = prepare_graph_inputs(coord=coords, ggrid=grid_path, translated=False, buffer=0, outer=outer)

The %%time directive at the top of this cell is a jupyter ‘magic command’ that will track the amount of time it takes to run the code in the cell. It can be useful, and you’ll see Wall time for this cell is around 1 minute.

Plot the region and the sample sites

Note that the actual sampling locality is a small black dot, but for the analysis, it is locked to the grid and displayed as a grey circle (size depending on the number of samples). It is important to remember this, because it may look like sampling localities have changed. However, this is just because FEEMS makes it fit to the grid. This step may take a minute or so.

%%time
sp_graph = SpatialGraph(genotypes, coords, grid, edges, scale_snps=False)
projection = ccrs.EquidistantConic(central_longitude=138, central_latitude=-40, standard_parallels=-40)
fig = plt.figure(dpi=300)
ax = fig.add_subplot(1, 1, 1, projection=projection)
v = Viz(ax, sp_graph, projection=projection, edge_width=.5,
    edge_alpha=1, edge_zorder=100, sample_pt_size=10,
    obs_node_size=7.5, sample_pt_color="black",
    cbar_font_size=10)
v.draw_map()
v.draw_samples()
v.draw_edges(use_weights=False)
v.draw_obs_nodes(use_ids=False)

png

For your own data you will need to set appropriate values for central_longitude, central_latitude, and standard_parallel to reduce distortion in the figures.

Fit the FEEMS model to the data

This step actually assesses to what degree genetic differentiation is higher or lower compared to what we can expect under an IBD model.

%%time
sp_graph.fit(lamb = 20.0)

The lamb parameter (lambda) determines the similararity of neighboring migration edges. With higher values neighboring migration edges are more similar, and with lower values they can be more different.

Through experimentation we chose 20.0 for this tutorial, but in practice you would implement a cross-validation procedure over a range of lambda values and then select the best for your data. A notebook showing this process is avalailble on the FEEMS github: FEEMS Cross-Validation

Plot the fitted model

Finally, we can replot the fitted model using the inferred edge weights to show patterns of spatial connectivity. Darker edges show migration that departs from a model of Isolation by Distance with brown edges indicating ‘barriers’, blue edges indicate ‘corridors’, and white edges showing regions that fit a model isolation by distance.

fig = plt.figure(dpi=300)

ax = fig.add_subplot(1, 1, 1, projection=projection)
v = Viz(ax, sp_graph, projection=projection, edge_width=0.5,
    edge_alpha=1, edge_zorder=100, sample_pt_size=20,
    obs_node_size=7.5, sample_pt_color="black",
    cbar_font_size=10, abs_max=0.5)
v.draw_map()
v.draw_edges(use_weights=True)
v.draw_obs_nodes(use_ids=False)

png

Save the FEEMS result to a file

You can use the matplotlib fuction savefig() to save the FEEMS results to a file. savefig() supports several different common formats (like .svg, .pdf, .png and some others) and it determines the appropriate file type to save as based on the file extension that you specify. So for example to save the results as a .png you can say:

fig.savefig("Seadragon-Feems.png")

And this will save the .png into your ipyrad-workshop directory.

Experiment with different lambda values

With any remaining time you may try changing the value of lamb, rerunning the call to sp_graph.fit() and then replotting, to check by eye how different lambda values change the spatial migration patterns.
