The ipyrad.analysis module: RAxML

RAxML is the most popular tool for inferring phylogenetic trees using maximum likelihood. It is fast even for very large data sets. The documentation for raxml is huge, and there are many options. However, we tend to use the same small number of options very frequently, which motivated us to write the ipa.raxml() tool to automate the process of generating RAxML command line strings, running them, and accessing the resulting tree files. The simplicity of this tool makes it easy to incorporate into other more complex tools, for example, to infer tress in sliding windows along the genome using the ipa.treeslider tool.

More information about RAxML can be found here and the scientific paper Stamatakis et al. (2014).

Input data

The RAxML tool takes a phylip formatted file as input. In addition you can set a number of analysis options either when you init the tool, or afterwards by accessing the .params dictionary. You can view the RAxML command string that is generated from the input arguments and you can call .run() to start the tree inference.

Creating a new phylip file with min_samples_locus set to 20

In order to get RAxML to run in a reasonable amount of time we will repeat the final step of ipyrad, and adjust it so that we have fewer missing data. Remember that we’ve previously set min_samples_locus to 4, which means that ipyrad includes all SNPs which have data for at least 4 samples. This will result in a matrix which also includes lots of missing data, e.g. at positions where only 5 or 6 samples have data, but the SNP will still be included in the final output. To create an output file with fewer missing data (but also fewer SNPs!), we can increase min_samples_locus, e.g. to 20. However, we don’t want to overwrite the existing output files, so we’ll create a new “branch” of our assembly and re-run step 7 to generate new output files.

Go back to a terminal in your ipyrad-workshop directory.

$ ipyrad -p params-seadragon.txt -b minsamples20

  loading Assembly: seadragon
  from saved path: ~/ipyrad-workshop/seadragon.json
  creating a new branch called 'minsamples20' with 30 Samples
  writing new params file to params-minsamples20.txt

This creates a new params file (as it says) which you should edit by double-clicking on params-minsamples20.txt in the leftnav file-browser and modifying it to update the following parameter (don’t forget to File → Save Text):

20              ## [21] [min_samples_locus]: Min # samples per locus for output

Now you can run step 7 again to generate the new output files with this new min_samples_locus setting:

$ ipyrad -p params-minsamples20.txt -s 7 -c 4

This will create a new set of output files in minsamples20_outfiles which have only retained loci present in 20 or more samples. Look at the stats file to see how many loci are retained in this dataset? Do you think it will be fewer or more than in the previous assembly with min_samples_locus set to 4?

A note on Jupyter/IPython

Jupyter notebooks are primarily a way to generate reproducible scientific analysis workflows in python. ipyrad analysis tools are best run inside Jupyter notebooks, as the analysis can be monitored and tweaked and provides a self-documenting workflow.

The rest of the materials in this part of the workshop assume you are running all code in cells of a jupyter notebook.

RAxML analyses

Create a new notebook for the RAxML analysis

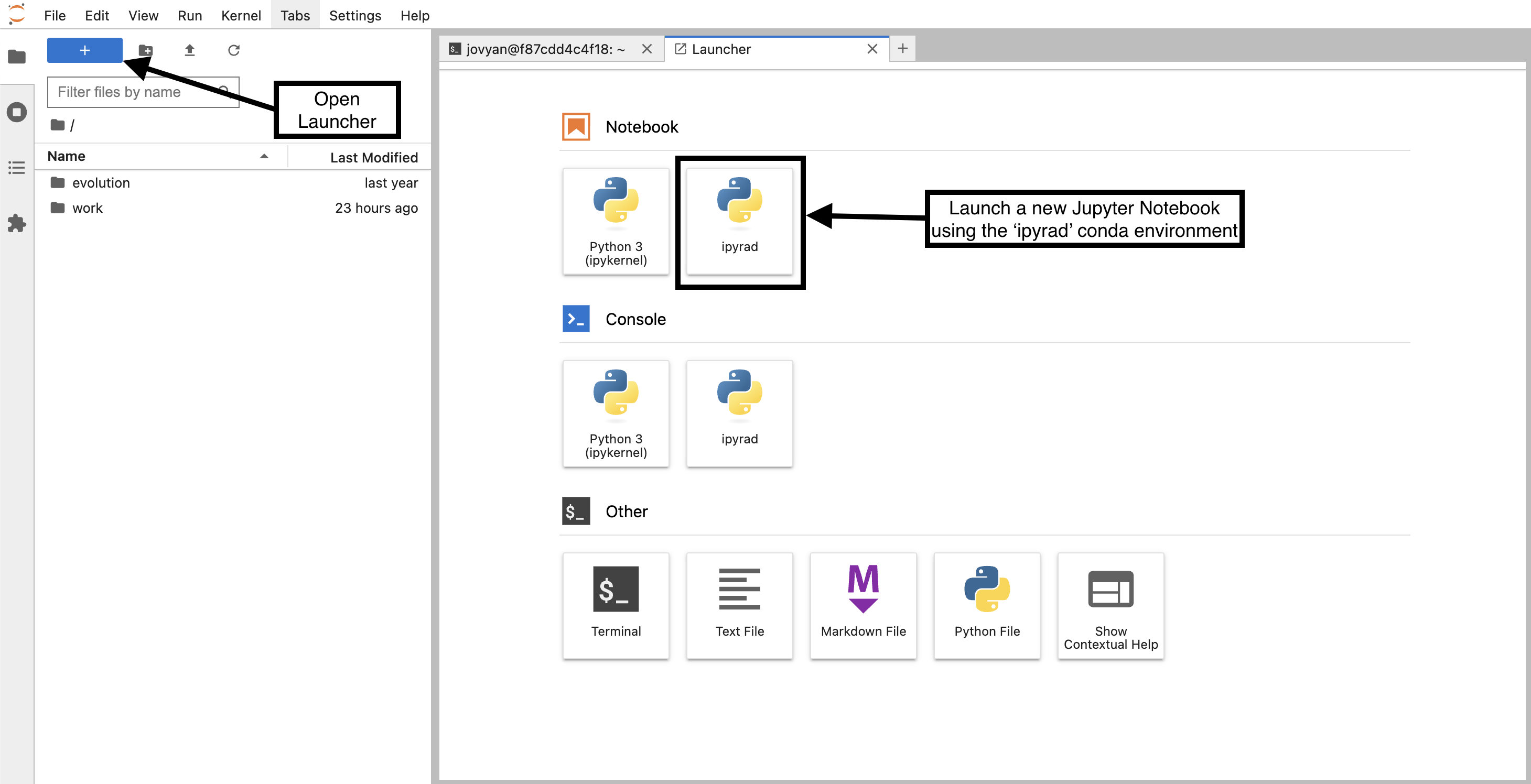

In the jupyter notebook browser interface navigate to your ipyrad-workshop directory and create a new Noteook using the base image as we did previously.

png

First things first, rename your new notebook to give it a meaningful name. You can either click the small ‘disk’ icon in the upper left corner of the notebook or choose File → Save Notebook and rename your notebook to “seadragon_raxml.ipynb”

Import ipyrad.analysis module

The import keyword directs python to load a module into the currently running context. This is very similar to the library() function in R. We begin by importing the ipyrad analysis module. Copy the code below into a notebook cell and click run.

import ipyrad.analysis as ipa
import toytree

The as ipa part here creates a short synonym so that we can refer to ipyrad.analysis as ipa, which is just faster to type.

The following cell shows the quickest way to results using the seadragon dataset (using min_samples_locus 20) we assembled earlier. Copy this code into a new notebook cell (or use the small grey + button on the toolbar) and run it.

# Path to the input phylip file
phyfile = "minsamples20_outfiles/minsamples20.phy"

# init raxml object with input data and (optional) parameter options
rax = ipa.raxml(data=phyfile, T=4, N=2)

# print the raxml command string for prosperity
print(rax.command)

# run the command, (options: block until finishes; overwrite existing)
rax.run(block=True, force=True)

Note: In this block of code, the # at the beginning of a line indicates to python that this is a comment, so it doesn’t try to run this line. This is a very handy thing if you want to add or remove lines of code from an analysis without deleting them. Simply comment them out with the #!

This runs for a minute or two…

Draw the inferred tree

After inferring a tree you can then visualize it in a notebook using toytree.

# load from the .trees attribute of the raxml object, or from the saved tree file
tre = toytree.tree(rax.trees.bipartitions)

# draw the unrooted tree
tre.draw(tip_labels_align=True, node_labels="support");

png

Rooting the tree

Rooting or re-rooting trees orients the direction of ancestor-descendant relationships and thus provides “polarization” for the direction of evolution. Most tree inference algorithms return an unrooted tree as a result, and it is up to the researcher to select the placement of the root based on external information (e.g., outgroup designation)

The toytree package provides a number of different methods for rooting trees, which we will briefly touch on here, but which you can find detailed information about in the toytree rooting documentation.

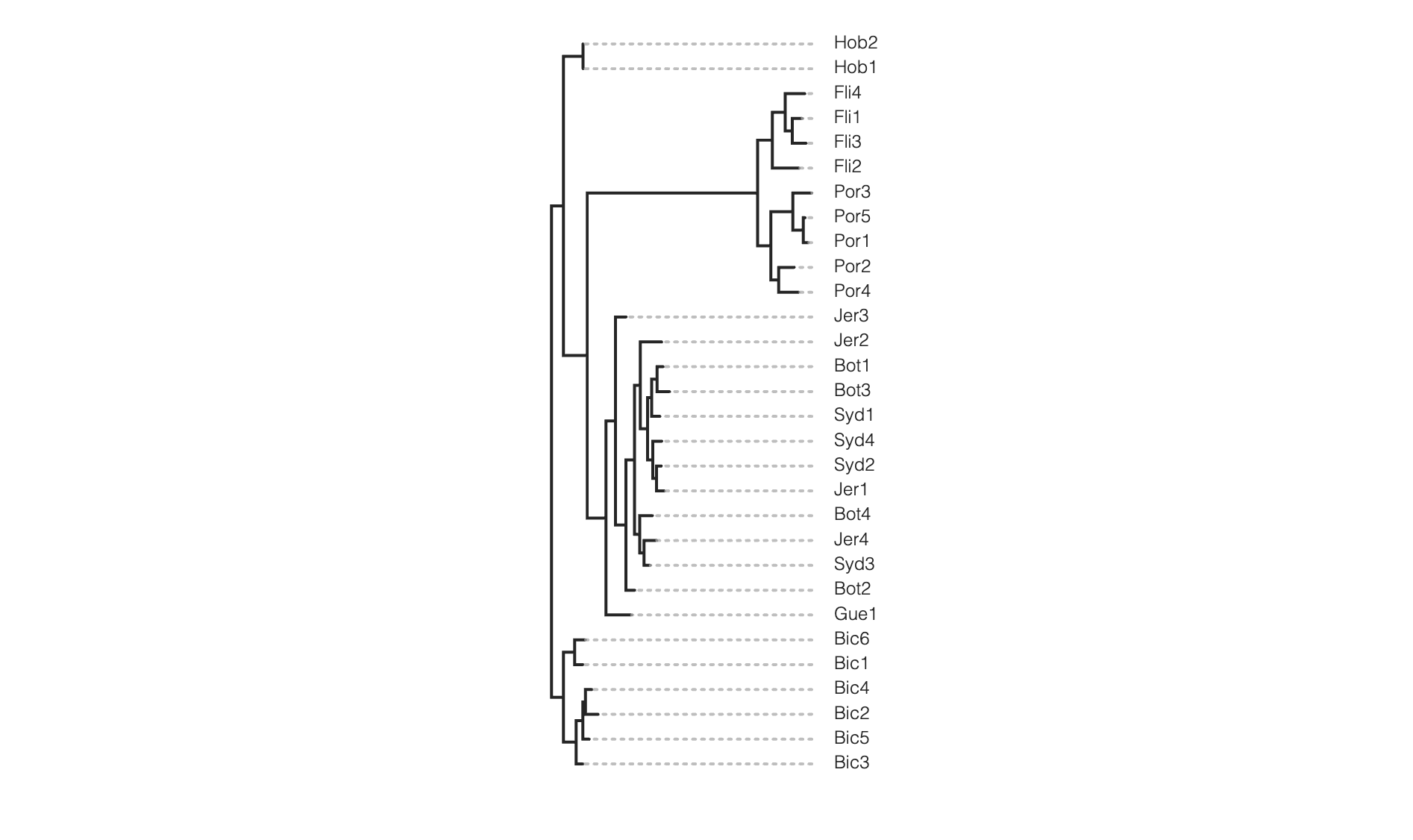

One way to root a tree is by passing in a list of sample names (usually out-group samples). Here we will choose to root on the samples from the “Bic” site, as an example.

tre = toytree.tree(rax.trees.bipartitions)
# Root the tree on samples from the "Bic" site
rtre = tre.root("Bic1", "Bic2", "Bic3", "Bic4", "Bic5", "Bic6")
rtre.draw(tip_labels_align=True)

png

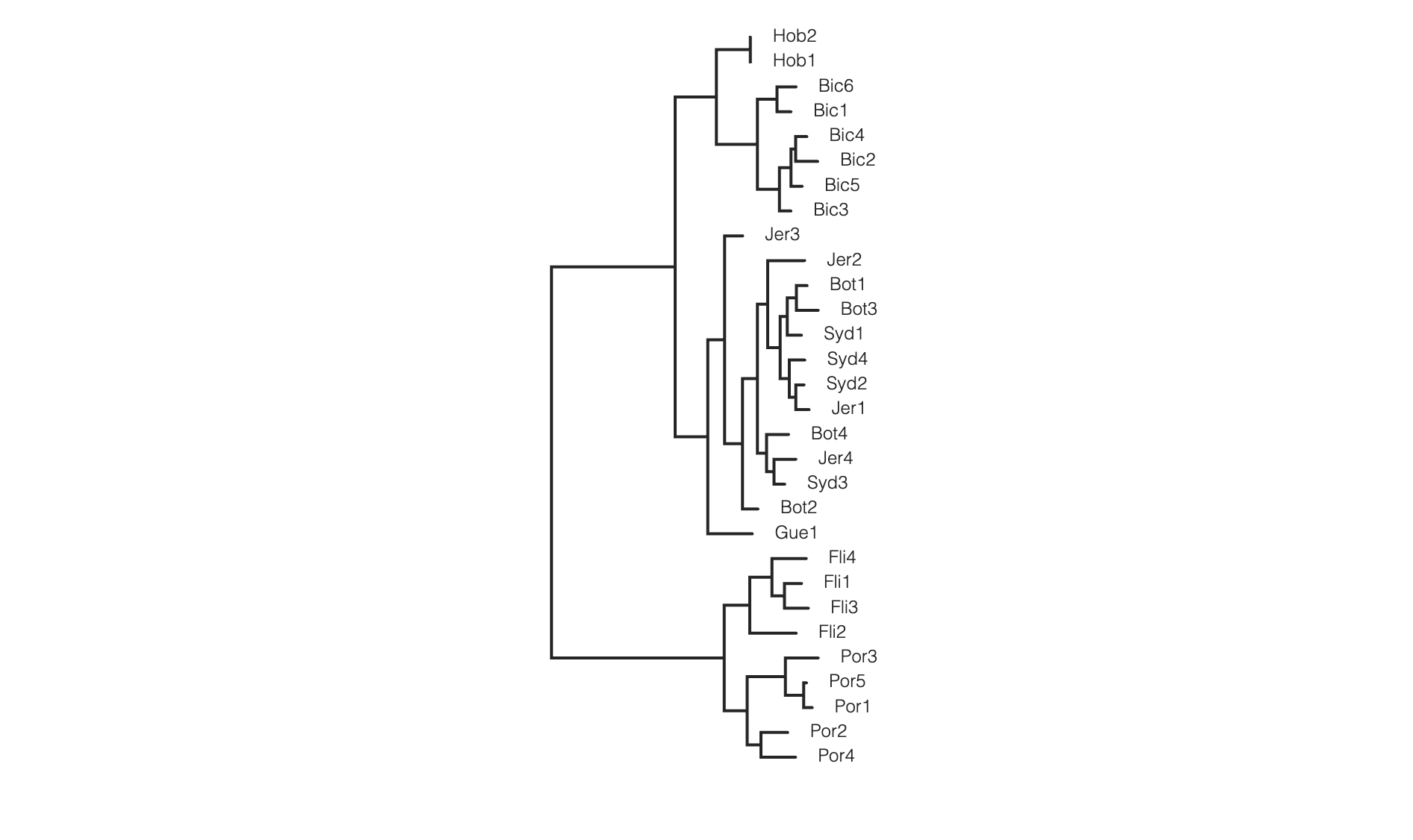

Rooting on the “midpoint” assumes a clock-like evolutionary rate (i.e., branch lengths are equal to time) and may yield odd results when this assumption is violated. This algorithm finds the root position by calculating the pairwise path length between all tips in an unrooted tree, and places the treenode on an edge representing the midpoint of the longest path.

tre = toytree.tree(rax.trees.bipartitions)
tre.mod.root_on_midpoint().draw()

png

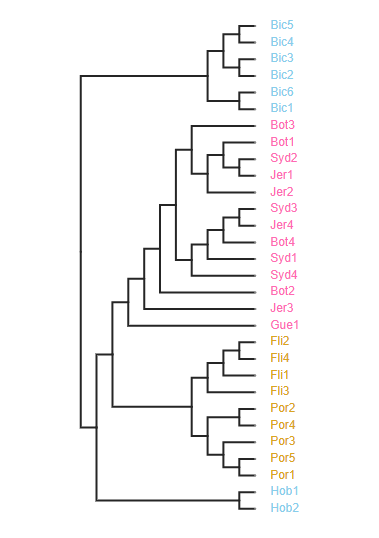

Coloring tip labels by sub-species identity

imap = {'NSW': ['Bot1', 'Bot2', 'Bot3', 'Bot4', 'Syd1', 'Syd2',
                'Syd3', 'Syd4', 'Jer1', 'Jer2', 'Jer3', 'Jer4', 'Gue1'],
        'TAS': ['Bic1', 'Bic2', 'Bic3', 'Bic4', 'Bic5', 'Bic6', 'Hob1', 'Hob2'],
        'VIC': ['Fli1', 'Fli2', 'Fli3', 'Fli4', 'Por1', 'Por2', 'Por3', 'Por4', 'Por5']}

colormap = {"NSW":"hotpink",
           "TAS":"skyblue",
            "VIC": "goldenrod"}

colorlist = []
for sample in rtre.get_tip_labels():
    for species, samples in imap.items():
        if sample in samples:
            colorlist.append(colormap[species])

rtre.draw(tip_labels_align=True,
          tip_labels_colors=colorlist,
          use_edge_lengths=False)

png

Setting parameters

By default several parameters are pre-set in the raxml object. To remove those parameters from the command string you can set them to None. Additionally, you can build complex raxml command line strings by adding almost any parameter to the raxml object init, as below.

# parameter dictionary for a raxml object
rax.params

N        2
T        4
binary   ~/miniconda3/envs/ipyrad/bin/raxmlHPC-PTHREADS-AVX2
f        a
m        GTRGAMMA
n        test
p        54321
s        ~/ipyrad-workshop/minsamples20_outfiles/minsamples20.phy
w        ~/src/notebooks/analysis-raxml
x        12345

# Demonstrating setting parameters
rax.params.N = 10
rax.params.f = "d"

This will perform 10 rapid hill-climbing ML analyses from random starting trees, with no bootstrap replicates. 10 is a small value so it will run fast.

Styling the tree

The default plotted tree can be manipulated with toytree, which offers a huge number of options for styling phylogenetic trees. A complete overview is available in the toytree tree styling documentation here we’ll just show a few of these.

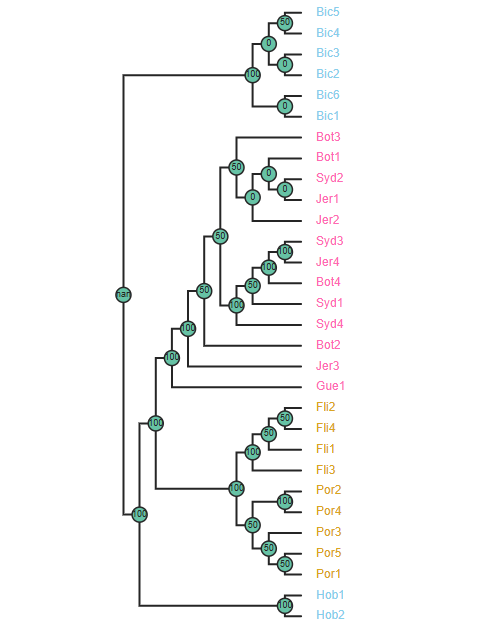

# Add node labels showing node support
rtre.draw(node_sizes=15,
          node_labels="support",
          use_edge_lengths=False,
          tip_labels_colors=colorlist)

png

# Change the tree style
rtre.draw(tree_style='d')          # dark-style
rtre.draw(tree_style='o')          # umlaut-style

png png

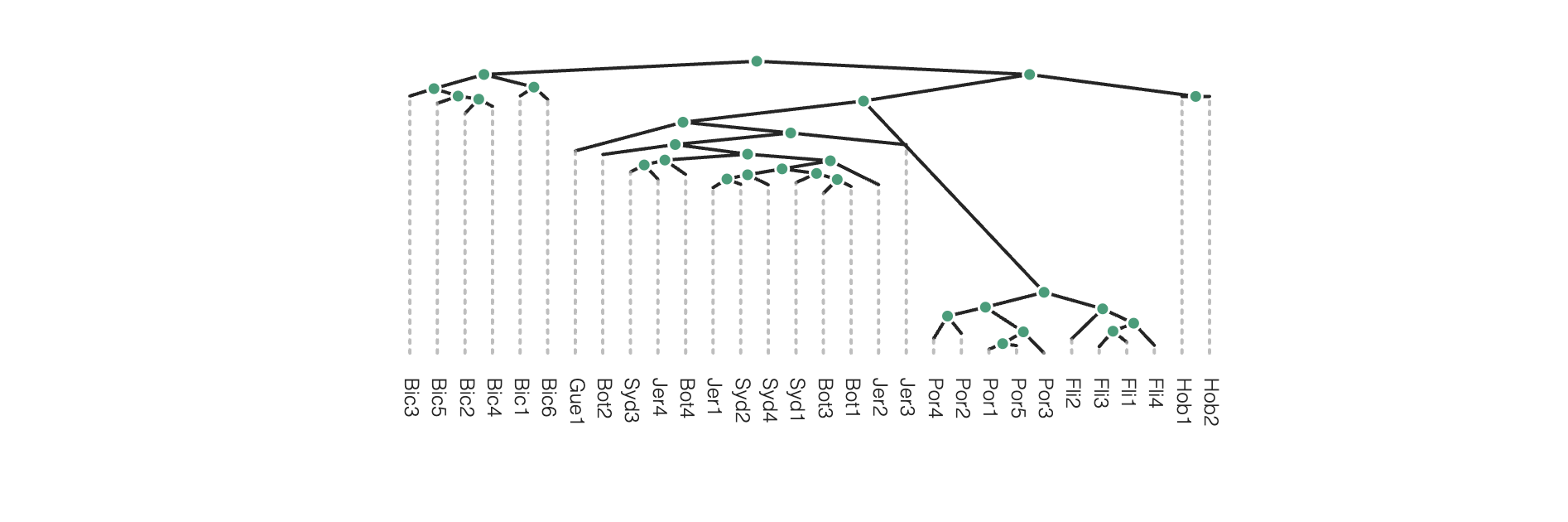

# Change the orientation
rtre.draw(tree_style="o", layout='d')

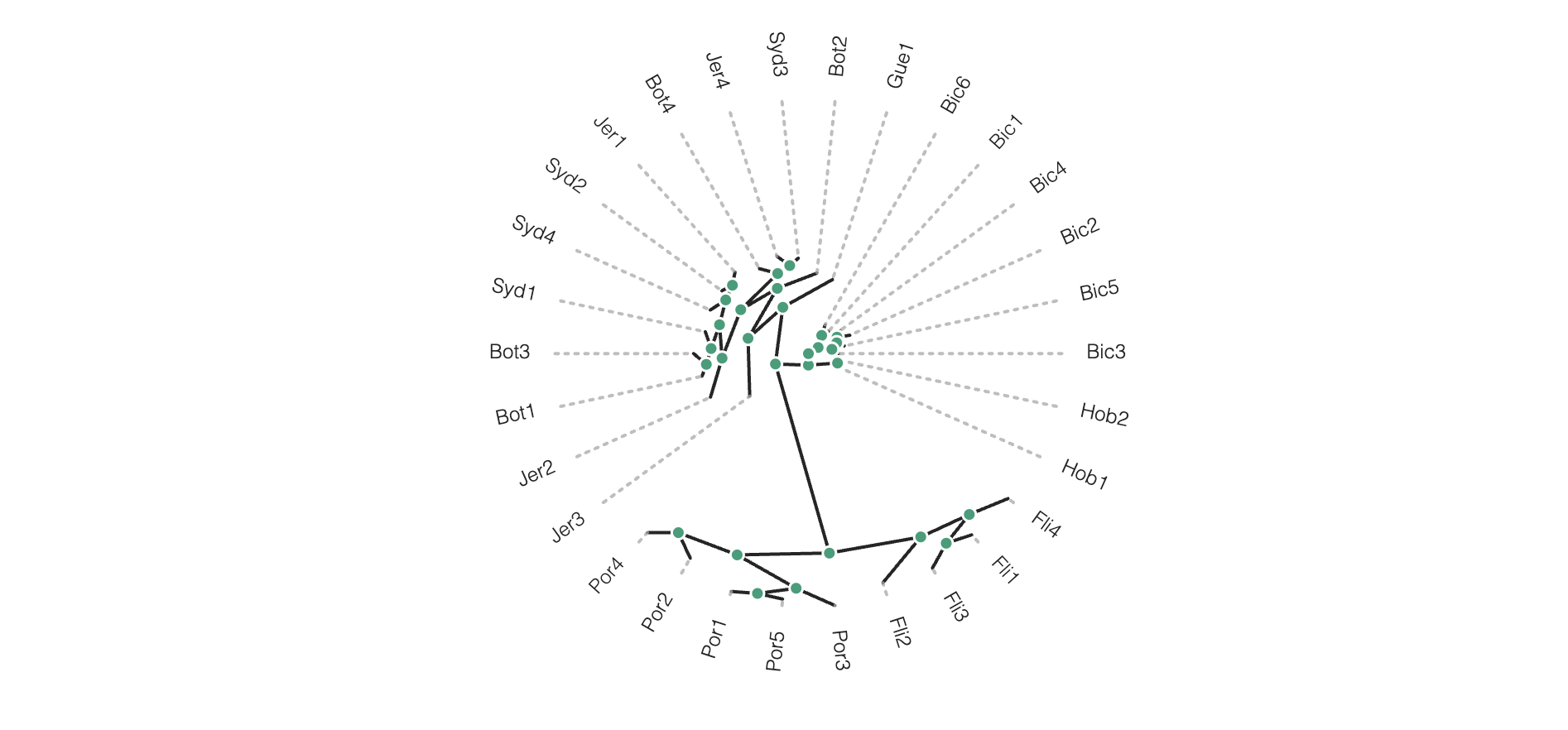

# Circle plot orientation
rtre.draw(tree_style="o", layout='c')

png png

Again, much more is available in the toytree tree styling documentation.

Saving trees to pdf

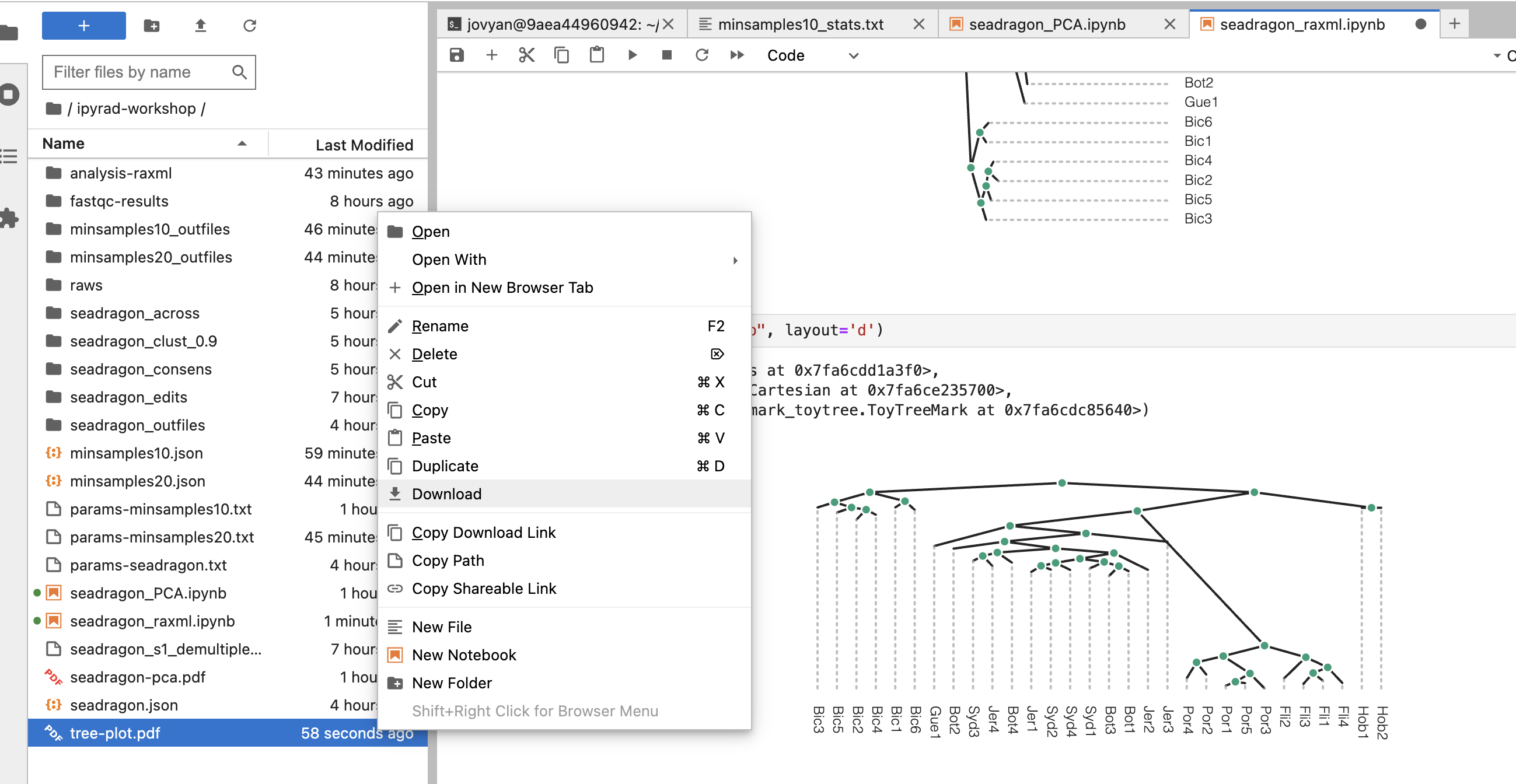

The toytree figures can be saved to a file in hi-resolution in many different formats: Saving trees to pdf/svg/other output formats

canvas, _, _ = rtre.draw()
toytree.save(canvas, "tree-plot.pdf")

png

If you want to style the saved tree as we have practiced, you’ll need to add whatever styling you want to the rtre.draw() call, like this:

canvas, _, _ = rtre.draw(tree_style="o", layout='c')
toytree.save(canvas, "tree-plot-styled.pdf")

More to explore

If the RADSeq assembly was performed with mapping to a reference genome this creates the opportunity to perform phylogenetic inference within genomic windows using blocks of RAD loci mapped to contiguous regions of a reference chromosome. The ipyrad analysis toolkit provides window_extracter for doing this (and more).

ipyrad-analysis toolkit: window_extracter

Window extracter has several key features:
